Tp-link Switch Semigestionable 8 Puertos Gigabit 4 Puertos Poe+

Descripción

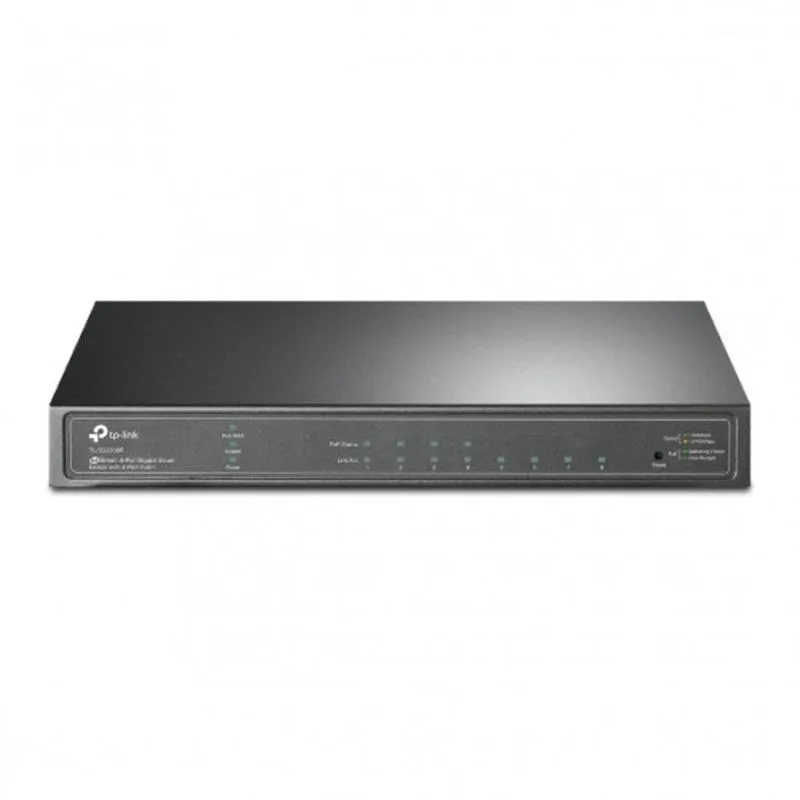

TP-LINK SWITCH SEMIGESTIONABLE 8 PUERTOS GIGABIT 4 PUERTOS POE+

TL-SG2008P Nuevo
Switch Smart Gigabit JetStream de 8 puertos con 4 puertos PoE+
Presupuesto PoE de 62 W: 4 puertos PoE + compatibles con 802.3at / af con un suministro total de 62 W *.
Puertos Gigabit: los puertos 4 × gigabit PoE + y los puertos 4 × gigabit no PoE proporcionan conexiones de alta velocidad.
Integrado en Omada SDN: Zero-Touch Provisioning (ZTP) **, Administración centralizada de la nube y Monitoreo inteligente.
Administración centralizada: acceso a la nube y aplicación Omada para una comodidad y administración fáciles.
Estrategias de seguridad sólidas: enlace de puertos IP-MAC, ACL, seguridad de puertos, defensa DoS, control de tormentas, DHCP Snooping, 802.1X, autenticación de radio y más.
Optimización las aplicaciones de voz y video: L2 / L3 / L4 QoS e IGMP snooping.

CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaz • 8 puertos RJ45 10/100/1000 Mbps (los puertos 1–4 admiten 802.3at / af PoE +)
• Negociación automática / Auto MDI / MDIX
Medios de Red • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Cantidad de Ventiladores Sin ventiladores
Fuente de Alimentación • Adaptador de corriente externo (Salida: 53.5 VDC / 1.31 A)
Consumo de Potencia • 7.9 W (220 V/50 Hz) (no PD connected)
• 79.2 W (220 V/50 Hz) (with 62 W PD connected)
Puertos PoE (RJ45) • Estándar: compatible con 802.3af / at
• Puertos PoE: 4 puertos
• Suministro PoE total: 62 W *
Dimensiones 209 x 126 x 26mm (8.2 x 4.9 x 1.0 in)
RENDIMIENTO
Ancho de Banda / Backplane 16 Gbps
Tabla de Direcciones MAC 8k
Memoria del Buffer de Paquete 4.1 Mbit
Jumbo Frame 9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio • 802.1p CoS/ DSCP priority
• 8 priority queues
• Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port/Flow based Rating Limit
• Smoother Performance
• Actions for flows
– Mirror(to supported interface)
– Redirect(to supported interface)
– Rate Limit
– QoS Remark
• Storm Control
– Multiple Control Modes(kbps/ratio/pps)
– Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+ • DHCP Relay
– DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Multicast L2 • 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
– Static Group Config
• MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
IPv6 Support • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet(v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP
VLAN • VLAN Group
– Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Lista de Control de Acceso • Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
• Time-based ACL
• MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
• IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
– Permit/Deny
• Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
• ACL Rules Binding
– Port Binding
– VLAN Binding
Seguridad • AAA
• 802.1X
– Port based authentication
– MAC(Host) based authentication
– Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
– MAB
– Guest VLAN
– Support Radius authentication and accountability
• IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
• IP Source Gurad
– 253 Entries
– Source IP+Source MAC
• IPv6 Source Gurad
– 183 Entries
– Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS1.0
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
Características de Conmutación L2 • Link Aggregation
– static link aggregation
– Up to 8 aggregation groups and up to 8 ports per group
– 802.3ad LACP
• Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
– CPU Mirroring
• Device Link Detect Protocol(DLDP)
Gestión • Web-based GUI and CLI management
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• System Log
• 802.1ab LLDP/ LLDP-MED
MIBs • MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
GESTIÓN
Omada App Si
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Sí (a través de OC300, OC200, Omada Cloud-Based Controller o Omada Software Controller)
Management Features • Gestión GUI basada en web y CLI
• SNMPv1 / v2c / v3
• Captura / informe SNMP
• RMON (grupos 1,2,3,9)
• Plantilla SDM
• Cliente DHCP / BOOTP
• Imagen dual, configuración dual
• Monitoreo de la CPU
• Diagnóstico de cable
• EEE
• Registro del sistema
• 802.1ab LLDP / LLDP-MED
OTROS
Certificaciones CE, FCC, RoHS
Contenido del Paquete • TL-SG2008P
• Power Adapter
• Installation Guide
• Rubber Feet
Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ o Windows 7/8/10, MAC® OS, NetWare®, UNIX® o Linux.
Factores Ambientales Temperatura de Funcionamiento: 0?~40? (32?~104?)
Temperatura de Almacenamiento: -40?~70? (-40?~158?)
Humedad de Funcionamiento: 10%~90% sin condensación
Humedad de Almacenamiento: 5%~90% sin condensación

https://www.tp-link.com/es/business-networking/poe-switch/tl-sg2008p/#specifications

Comprar TP-LINK SWITCH SEMIGESTIONABLE 8 PUERTOS GIGABIT 4 PUERTOS POE+
