Tp-link Switch Omada Sx3832 De 24 Puertos
Descripción

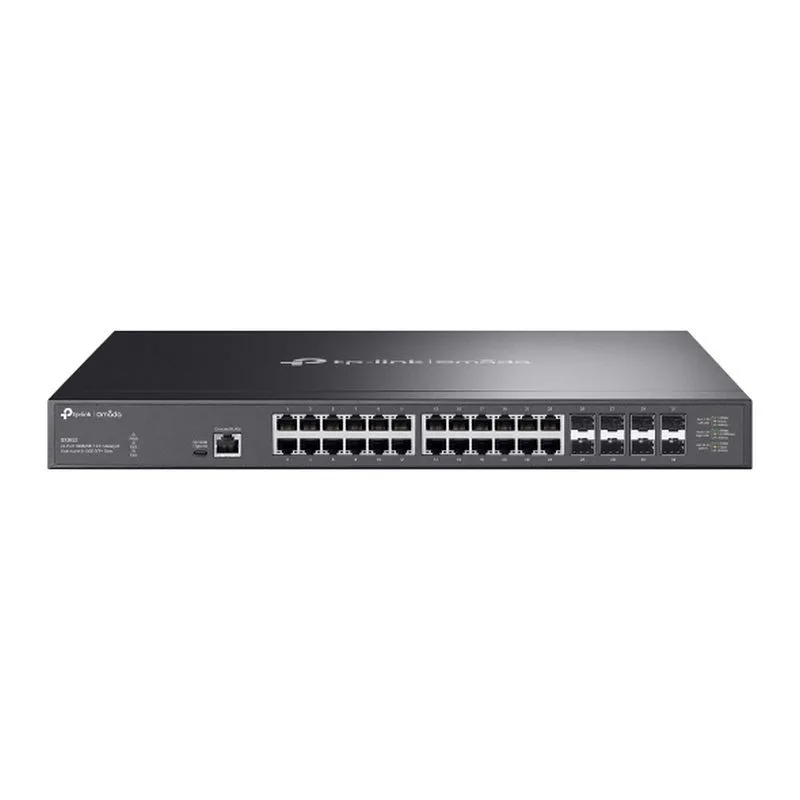

TP-LINK SWITCH OMADA SX3832 DE 24 PUERTOS
Switch gestionable Omada 10GBASE-T L2+ de 24 puertos con 8 ranuras SFP+ 10GE
24 puertos RJ45 de 1/2,5/5/10 Gbps
8 ranuras SFP+ de 1/10 Gbps
Capacidad de conmutación de 640 Gbps
Gestión centralizada en la nube a través de la web o la app Omada
Gestión independiente a través de la web, CLI, SNMP y RMON
El enrutamiento estático ayuda a enrutar el tráfico interno para una mayor eficiencia
VLAN, ACL, QoS, IGMP Snooping, OAM y DDM
ERPS permite una rápida protección y recuperación en una topología de anillo
Carcasa metálica resistente y diseño para montaje en rack
HARDWARE FEATURES
Interface 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
8× 1/10G SFP+ Slots**
1× RJ45 Console Port
1× USB Type C Console Port
Fan Quantity 2
Physical Security Lock v
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3×8.7×1.7 in (440×220×44 mm)
Mounting Rack Mountable
Max Power Consumption 104.9 W (@110V/60Hz)
106.5 W (@220V/50Hz)
Max Heat Dissipation 357.81 BTU/hr (@110 V/60 Hz)
363.23 BTU/hr (@220 V/50 Hz)
PERFORMANCE
Switching Capacity 640 Gbps
Packet Forwarding Rate 240 Mpps
MAC Address Table 32 K
Packet Buffer Memory 24 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features 128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
510 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
L2 Multicast Supports 4,000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
VLAN VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 256 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 12
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN
Access Control List Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN
Security IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 96 Entries
IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard: 95 Entries
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
802.1X
– Port-based authentication
– Mac-base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Radius authentication and accountability support
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6 IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
Command Line Interface (CLI) through the console port, telnet
SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
IEEE 802.3az Energy Efficient Ethernet (EEE)
Password Recovery
SNTP
System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents SX3832 Switch
Power Cord
Console Cable
Quick Installation Guide
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: -550 ? (23122 ?);
Storage Temperature: -4070 ? (-40158 ?)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
