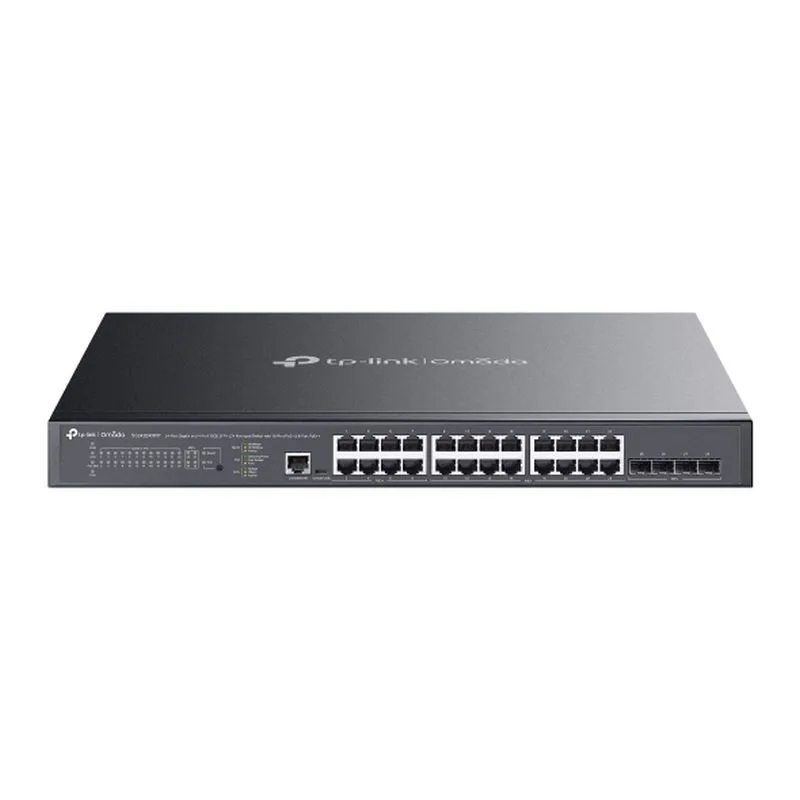

Tp-link Switch Omada Sg3428xmpp L2+ De 24 Puertos Y 4 Sfp+
700,22 €
TP-LINK SWITCH OMADA SG3428XMPP L2+ DE 24 PUERTOS Y 4 SFP+
700,22 €
Pago asegurado por Revolut.com
Descripción
TP-LINK SWITCH OMADA SG3428XMPP L2+ DE 24 PUERTOS Y 4 SFP+
Switch Omada L2+ de 24 puertos Gigabit y 4 SFP+ a 10G, con 16 PoE+ y 8 PoE++
8 puertos PoE++ a Gigabit, hasta 90W de salida PoE por puerto**
16 puertos PoE+ a Gigabit, hasta 30W de salida PoE por puerto**
4 puertos SFP+ a 10G
500W* de budget total de energía
Gestión centralizada en la nube a través de la web o de la aplicación Omada
Admite gestión local via web, CLI, SNMP, y RMON
Enrutamiento estático ayuda en el enrutamiento interno del tráfico para una mayor eficiencia
VLAN, ACL, QoS, IGMP Snooping, OAM y DDM
ERPS admite protección y recuperación rápida en una topología de anillo
Carcasa metálica duradera y diseño para montaje en rack
.CARACTERÍSTICAS DE HARDWARE
Interfaz 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console Port
Cantidad de Ventiladores 3
Bloqueo de Seguridad Físico v
Fuente de Alimentación 100-240 V AC~50/60 Hz
Puertos PoE (RJ45) Standard: 802.3at/af/bt compliant
PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
PoE+ Ports: Ports 9~24 (up to 30 W PoE Output per Port)
Power Budget: 500 W*
Dimensiones 17.3×13.0×1.7 in (440×330×44 mm)
Montaje Rack Mountable
Consumo de Potencia Máximo 605.5W (110V/60Hz) ( with 500W PD connected)
Disipación máxima de calor 2064.96 BTU/hr (110 V/60 Hz) (with 500W PD connected)
RENDIMIENTO
Capacidad de Conmutación 128 Gbps
Tasa de Reenvío de Paquetes 95.23 Mpps
Tabla de Direcciones MAC 16 K
Memoria del Buffer de Paquete 12 Mbit
Jumbo Frame 9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio 8 priority queues
802.1p CoS/DSCP priority
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
Características L2 y L2+ 128 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Multicast L2 Supports 1000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile
Características Avanzadas Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features**:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
sFlow
VLAN VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN
Lista de Control de Acceso Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN
Seguridad IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard: 100 Entries
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
802.1X
– Port-based authentication
– Mac-base authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Radius authentication and accountability support
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6 IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIB
GESTIÓN
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller.
Funciones de gestión Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log
Otros
Certificaciones CE, FCC
Contenido del Paquete SG3428XMPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Factores Ambientales Operating Temperature: 040 ? (32104 ?);
Storage Temperature: -4070 ? (-40158 ?)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Comprar TP-LINK SWITCH OMADA SG3428XMPP L2+ DE 24 PUERTOS Y 4 SFP+
