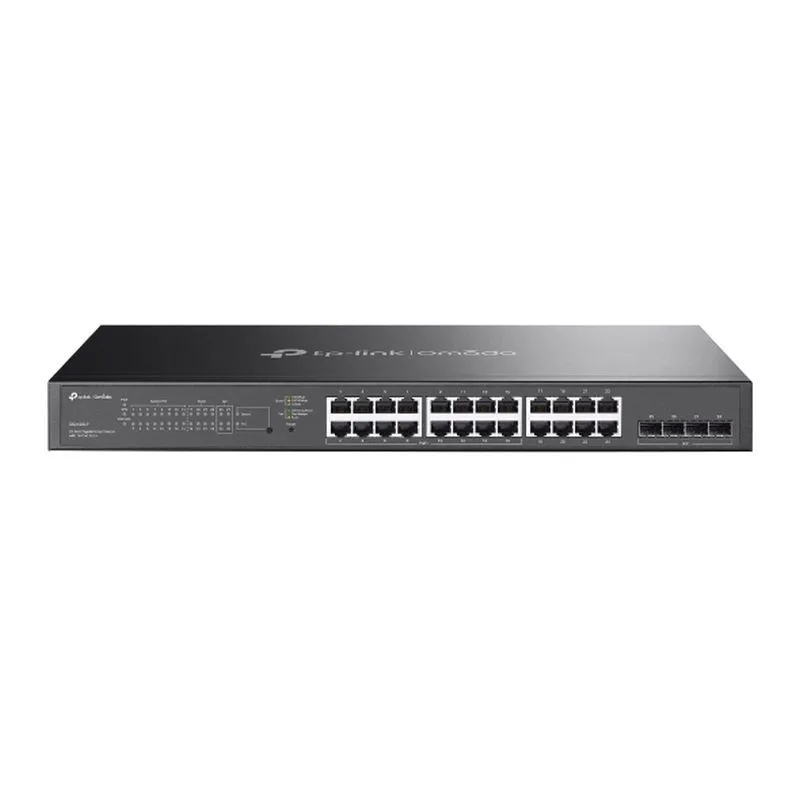

Tp-link Switch Omada Sg2428lp De 28 Puertos Con 16 Puertos Poe+
252,00 €
TP-LINK SWITCH OMADA SG2428LP DE 28 PUERTOS CON 16 PUERTOS POE+
252,00 €
Pago asegurado por Revolut.com
Descripción
TP-LINK SWITCH OMADA SG2428LP DE 28 PUERTOS CON 16 PUERTOS POE+
Switch Omada Smart de 28 puertos Gigabit, con 16 puertos PoE+
16x puertos PoE+ a Gigabit compatibles con 802.3af/at
8x puertos no-PoE a Gigabit y 4× puertos SFP
Budget PoE total de 150W, hasta 30W de salida PoE por puerto*
Gestión centralizada en la nube a través de la web o de la aplicación Omada
Admite gestión local via web, CLI, SNMP, y RMON
Enrutamiento estático ayuda en el enrutamiento interno del tráfico para una mayor eficiencia
VLAN, ACL, QoS, y IGMP Snooping
Carcasa metálica duradera y diseño para montaje en rack
CARACTERÍSTICAS DE HARDWARE
Interfaz 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4× Gigabit SFP Slots
Cantidad de Ventiladores Fanless
Bloqueo de Seguridad Físico v
Fuente de Alimentación 100-240V AC, 50/60Hz
Puertos PoE (RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
PoE Power Budget: 150 W*
Dimensiones 17.3×8.7×1.73 in (440×220×44 mm)
Montaje Rack Mountable
Consumo de Potencia Máximo 184.7 W (110V/60Hz) (with 150 W PD connected)
Disipación máxima de calor 628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)
RENDIMIENTO
Capacidad de Conmutación 56 Gbps
Tasa de Reenvío de Paquetes 41.66 Mpps
Tabla de Direcciones MAC 8K
Memoria del Buffer de Paquete 4.1 Mbit
Jumbo Frame 9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio 802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control: Port/Flow-based Rating Limit
Smoother Performance
Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+ 16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
– DHCP Interface Relay
– DHCP VLAN Relay
DHCP L2 Relay
Static ARP
Proxy ARP
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
Multicast L2 511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
VLAN VLAN Group: Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN
Lista de Control de Acceso Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
ACL Rules Binding
– Port Binding
– VLAN Binding
Seguridad IP-MAC-Port Binding
AAA
802.1X
– Port based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Radius authentication and accountability support
IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
IP Source Guard
– 253 Entries
– Source IP+Source MAC
IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6 IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)
GESTIÓN
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller
Funciones de gestión Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
Otros
Certificaciones CE, FCC
Contenido del Paquete SG2428LP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Requisitos del sistema Microsoft® Windows® XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Factores Ambientales Operating Temperature: 040 ? (32104 ?);
Storage Temperature: -4070 ? (-40158 ?)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% RH non-condensing
Comprar TP-LINK SWITCH OMADA SG2428LP DE 28 PUERTOS CON 16 PUERTOS POE+
