Tp-link Router Er7412-m2 Omada Multigigabit
204,00 € igic no incl.

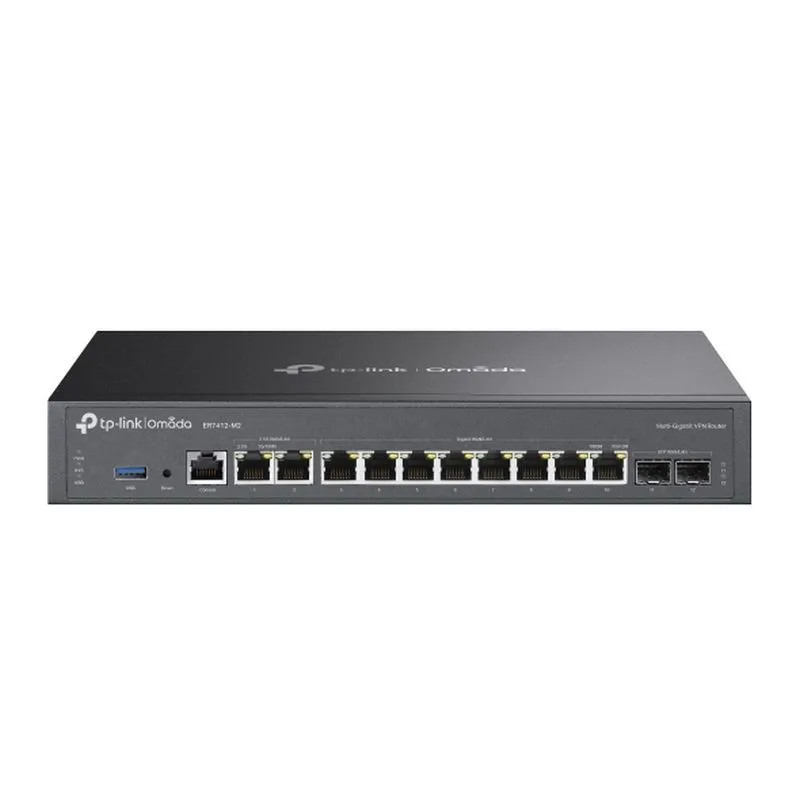

TP-LINK ROUTER ER7412-M2 OMADA MULTIGIGABIT
204,00 € igic no incl.
Pago asegurado por Revolut.com
Descripción
TP-LINK ROUTER ER7412-M2 OMADA MULTIGIGABIT
SEGURIDAD
Control de Acceso Source/Destination IP-Based ACL
Stateful ACL
IPv4/IPv6 ACL
Location Based ACL
Filtrado WEB Group Filtering§
URL Filtering
Web Security§
Inspección ARP Sending GARP Packets§
ARP Scanning§
IP-MAC Binding§
Defensa contra Ataques TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interfaz 1× 2.5G RJ45 WAN/LAN Port
1× 2.5G RJ45 WAN/LAN Port
2× Gigabit SFP WAN/LAN Ports
8× Gigabit RJ45 WAN/LAN Ports
1× RJ45 Console Port
1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Botones Reset Button
Fuente de Alimentación 100240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensiones 11.6×7.1×1.7 in (294×180×44 mm)
Protección 4 kV surge protection
Carcasa Steel
Montaje Desktop
Rackmountable
Consumo de Potencia Máximo 18.5W (With USB 3.0 connected)
RENDIMIENTO
DPI Throughput 2.2Gbps
GRE Unencrypted: 1153.0 Mbps
Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Sesiones Concurrentes 1,000,000
Nuevas sesiones/Segundos 7,000
NAT (IP Estática) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
Rendimiento VPN IPsec ESP-SHA1-AES256: 1125.60 Mbps
ESP-SHA256-AES256: 1133.1 Mbps
ESP-SHA384-AES256: 1126.6 Mbps
ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
Rendimiento VPN L2TP Unencrypted: 2724.5 Mbps
Encrypted: 1018.4Mbps
Rendimiento VPN PPTP Unencrypted: 3035 Mbps
Encrypted: 534.6 Mbps
Rendimiento VPN SSL 263.1 Mbps
66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
FUNCIONES BÁSICAS
Tipo de conexión WAN Static IP/Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
Mobile Broadband: 4G/3G modem for backup via USB port
Clonado MAC Modify WAN/LAN MAC Address
DHCP DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
FUNCIONES AVANZADAS
Enrutamiento Avanzado Static Routing
Policy Routing
RIP (available in Standalone Mode)
OSPF (available in Standalone Mode)
Control de Ancho de Banda IP/Port-based Bandwidth Control
Balanceo de Carga Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing§, Failover)
Online Detection
NAT One-to-One NAT§
Multi-Net NAT
Virtual Server
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Límite de sesión IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
VPN IPsec 150 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
VPN PPTP PPTP VPN Server
PPTP VPN Client (15)**
150 Tunnels
PPTP with MPPE Encryption
VPN L2TP L2TP VPN Server
L2TP VPN Client (15)**
150 Tunnels
L2TP over IPSec
OpenVPN OpenVPN Server
OpenVPN Client (11)**
121 OpenVPN Tunnels
Certificate + Account Mode
Full Mode
WireGuard VPN 20 Tunnels
AUTENTICACIÓN
Autenticación web No Authentication
Simple Password*
Hotspot (Local User/Voucher*/SMS*/Radius*)
External Radius Server
External Portal Server*
LDAP
GESTIÓN
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Servicio Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mantenimiento Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3*
Diagnostics (Ping & Traceroute)§
NTP Synchronize§
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller.
Funciones de gestión Automatic Device Discovery*
Batch Configuration*
Batch Firmware Upgrading*
Intelligent Network Monitoring*
Abnormal Event Warnings*
Unified Configuration*
Reboot Schedule*
Otros
Certificaciones CE, FCC
Contenido del Paquete ER7412-M2
Power Cord
Quick Installation Guide
Rackmount Kit
RJ45 Console Cord
Requisitos del sistema Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Factores Ambientales Operating Temperature: 045 ? (32113 ?);
Storage Temperature: -4070 ? (-40158 ?)
Operating Humidity: 1090% RH non-condensing
Storage Humidity: 590% non-condensing
Comprar TP-LINK ROUTER ER7412-M2 OMADA MULTIGIGABIT
