Descripción

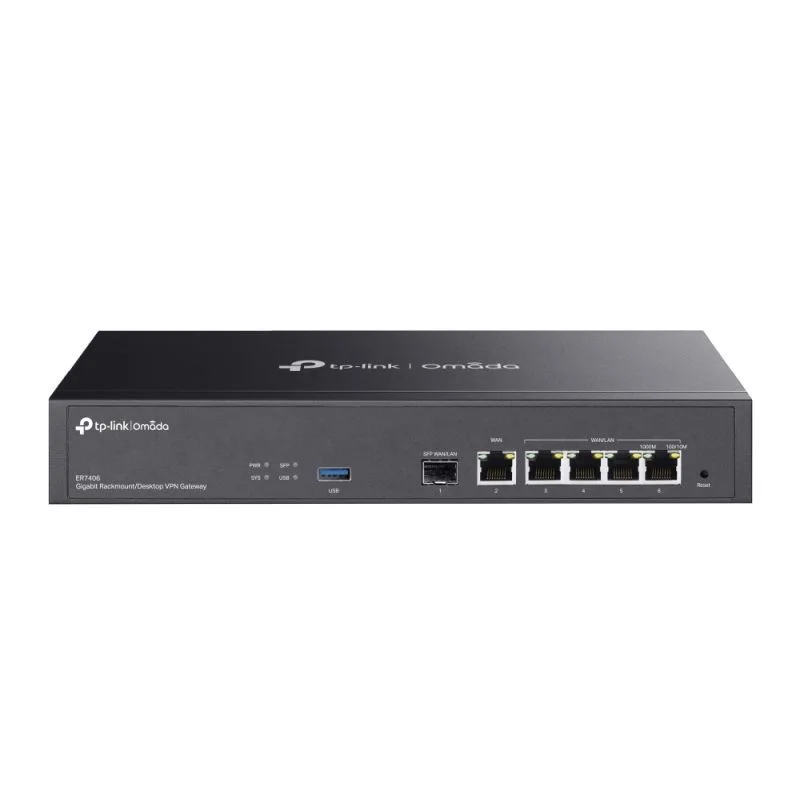

TP-LINK ROUTER ER7406 OMADA MULTIGIGABIT
Router VPN Omada Multi-Gigabit
1× puerto WAN/LAN Gigabit SFP
5 puertos Gigabit RJ45 (1 WAN, 4 WAN/LAN)
1 puerto USB 3.0 (admite almacenamiento USB y copia de seguridad LTE con dongle LTE)
El balanceo de carga en los 5 puertos WAN aumenta la tasa de utilización de la banda ancha multilínea
VPN de alta seguridad SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP y OpenVPN
Gestión centralizada en la nube a través de la web o de la aplicación Omada*.
Protección DoS/DDoS, filtrado IP/MAC/URL, DPI e IPS/IDS para una mayor seguridad.
Montaje en rack/sobremesa
SEGURIDAD
Control de Acceso Source/Destination IP Based Access Control
Filtrado WEB Group Filtering§
URL Filtering
Web Security§
Inspección ARP Sending GARP Packets
ARP Scanning§
IP-MAC Binding
Defensa contra Ataques TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interfaz 1 Gigabit SFP WAN/LAN Port
1 Gigabit WAN Port
4 Gigabit LAN/WAN Ports
1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Cantidad de Ventiladores Fanless
Botones Reset Button
Fuente de Alimentación 100-240VAC, 50/60Hz
Flash 128 MB NAND
DRAM 512 MB DDR4
LED PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensiones 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protección 4 kV surge protection
Carcasa Steel
Montaje Desktop
Rackmountable
Consumo de Potencia Máximo 7.5 W (with USB 3.0 connected)
4.5 W (without USB 3.0 connected)
RENDIMIENTO
IPS Throughput TCP: 229 Mbps;
UDP: 188 Mbps
DPI Throughput TCP: 933 Mbps;
UDP: 927 Mbps
GRE Unencrypted: 611.9 Mbps
Encrypted: 325.0 Mbps
WireGuard VPN 341.3 Mbps
Sesiones Concurrentes 150,000
Nuevas sesiones/Segundos 5,300
NAT (IP Estática) 945.3 Mbps / 940.5 Mbps
NAT(DHCP) 939.6 Mbps / 940.9 Mbps
NAT(PPPoE) 943.6 Mbps / 940.9 Mbps
NAT (L2TP) 880.1 Mbps / 859.0 Mbps
NAT (PPTP) 855.0 Mbps / 907.2 Mbps
Rendimiento VPN IPsec ESP-SHA1-AES256: 617.1 Mbps
ESP-SHA256-AES256: 592.8 Mbps
ESP-SHA384-AES256: 592.4 Mbps
ESP-SHA512-AES256: 604.5 Mbps
OpenVPN 139.1 Mbps
Rendimiento VPN L2TP Unencrypted: 977.4 Mbps
Encrypted: 334.6 Mbps
Rendimiento VPN PPTP Unencrypted: 1064.1 Mbps
Encrypted: 206.8 Mbps
Rendimiento VPN SSL 131.6 Mbps
66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81,279 pps / 81,275 pps
FUNCIONES BÁSICAS
Tipo de conexión WAN Static IP
Dynamic IP
PPPoE(supports MRU Configuration)
PPTP
L2TP
Clonado MAC Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
IPv6 StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
FUNCIONES AVANZADAS
Enrutamiento Avanzado Static Routing
Policy Routing
RIP (available in Standalone Mode)
OSPF (available in Standalone Mode)
Control de Ancho de Banda IP-based Bandwidth Control
Balanceo de Carga Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-Net NAT
Port Forwarding
Port Triggering§
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Límite de sesión IP-based Session Limit
VPN
GRE v (Only in Standalone Mode)
SSL VPN 50 Tunnels
VPN IPsec 100 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
IPsec Failover
IKE v1/v2
MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
VPN PPTP PPTP VPN Server
PPTP VPN Client (10)**
50 Tunnels
PPTP with MPPE Encryption
VPN L2TP L2TP VPN Server
L2TP VPN Client (10)**
50 Tunnels
L2TP over IPSec
OpenVPN OpenVPN Server
OpenVPN Client (5)**
55 OpenVPN Tunnels
Certificate + Account Mode
Full Mode
WireGuard VPN 20 Tunnels
AUTENTICACIÓN
Autenticación web No Authentication
Simple Password*
Hotspot (Local User /Voucher*/ SMS/Radius*)
External Radius Server
External Portal Sever<*
LDAP§
GESTIÓN
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Acceso a la nube Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Servicio Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mantenimiento Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute) (only in Standalone Mode)
NTP Synchronize (only in Standalone Mode)
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Aprovisionamiento sin contacto Yes. Requires the use of Omada Cloud-Based Controller.
Funciones de gestión Automatic Device Discovery*
Batch Configuration*
Batch Firmware Upgrading*
Intelligent Network Monitoring*
Abnormal Event Warnings*
Unified Configuration*
Reboot Schedule*
Otros
Certificaciones CE, FCC, RoHS
Contenido del Paquete ER7406
Power Cord
Quick Installation Guide
Rackmount Kit
Requisitos del sistema Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10
MAC OS, NetWare, UNIX or Linux
Factores Ambientales Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 5% to 90% non-condensing
